Data gathering

The collector will continously collect data from your TSM servers.
Two types of gathering is performed:

Every 15 minutes data is collected and kept for 14 days about :

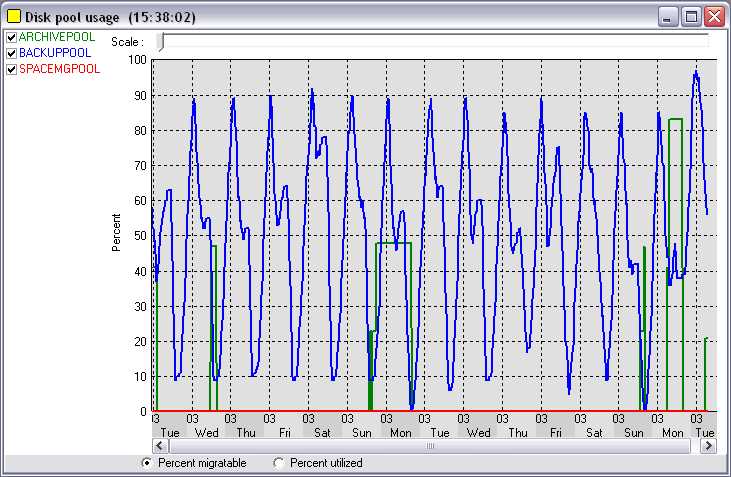

• Disk pool usage

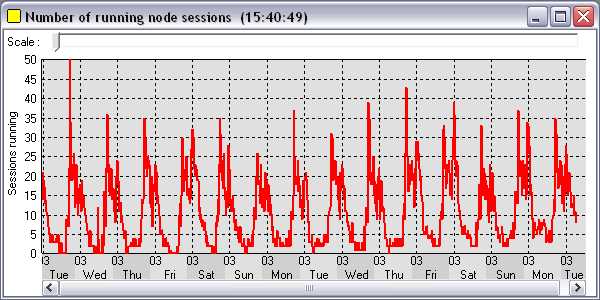

• Number of running sessions

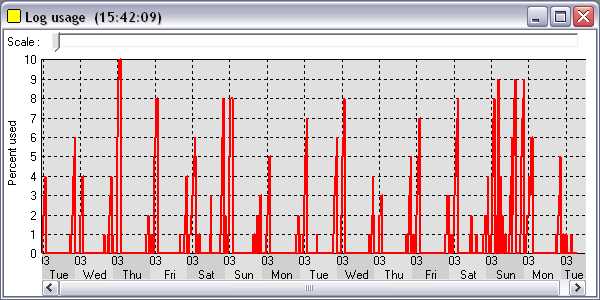

• Log usage

See below for examples

Once every 24 hours history data is collected and kept for 2 years about :

• Database usage
• Total amount of data stored on the TSM server
• Total amount of data stored per tapepool
• Total amount of data stored per node
• Total number of volumes used
• Number of volumes used per tapepool
• Daily amount of data backed up
• Daily amount of data archived
• Daily amount of data restored
• Network transfer rate
• Backup elapsed time
• Library usage
• Processes
• and more...

See below for examples

If you have multiple TSM servers, some of the statistics are combined into a single graph to provide a better overview.

See below for examples

All the graphs can be printed by right clicking the window with your mouse.

14 day history

2 year history

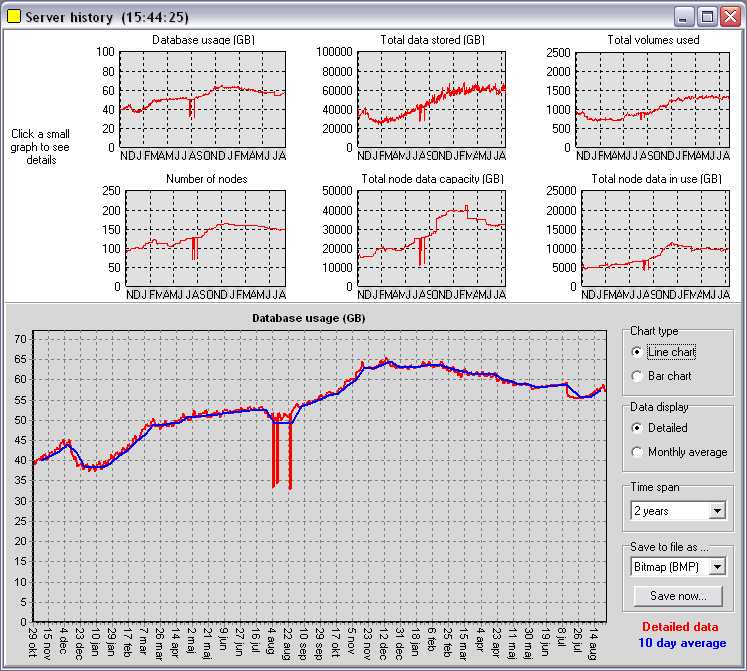

Here is an example of one of the displays :
All the graphs can be printed by right clicking the window with your mouse.

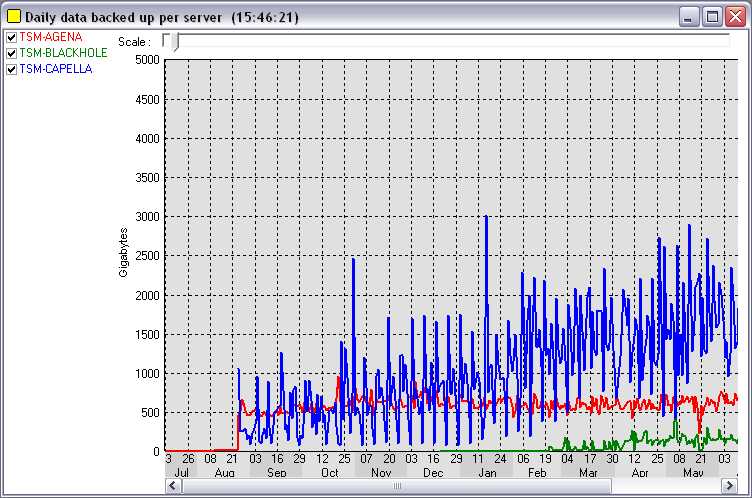

Multi server 2 year history

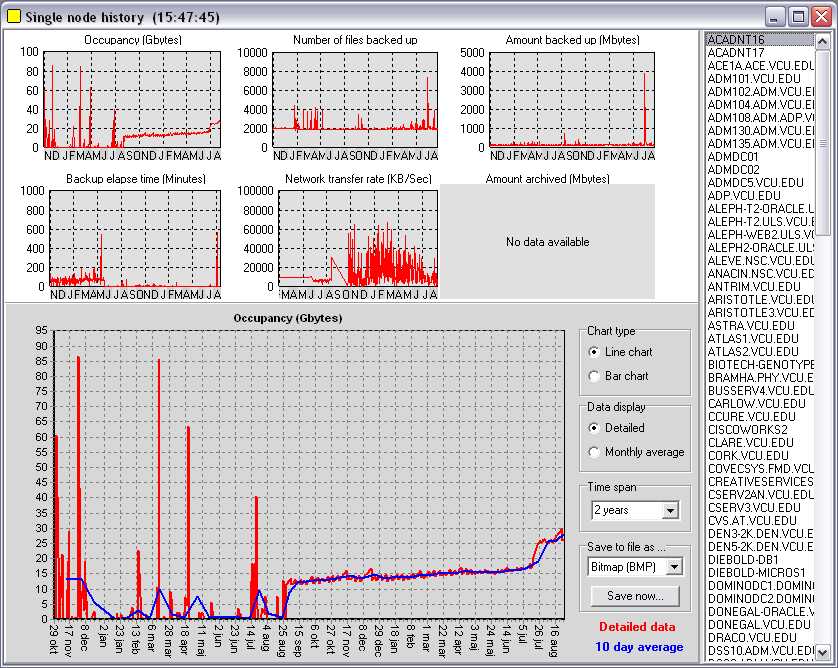

Various node data
